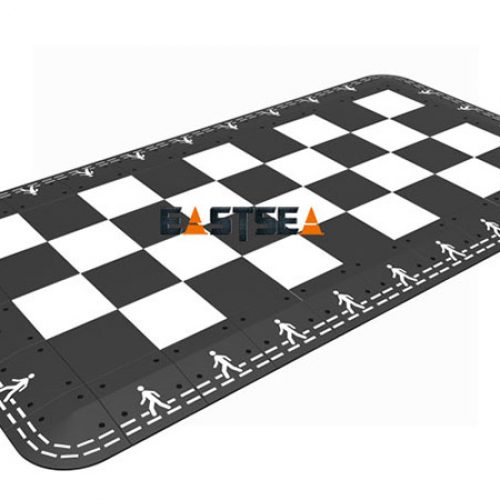

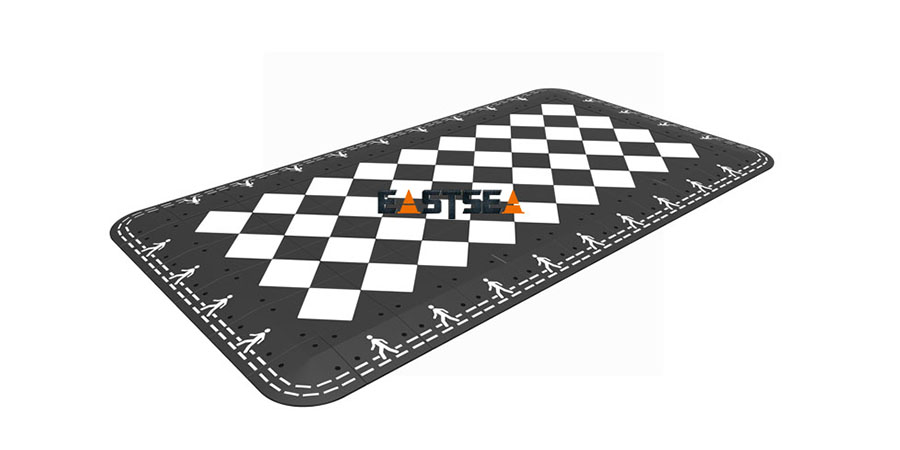

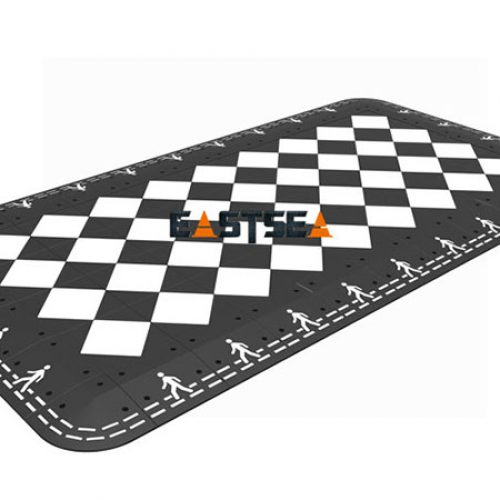

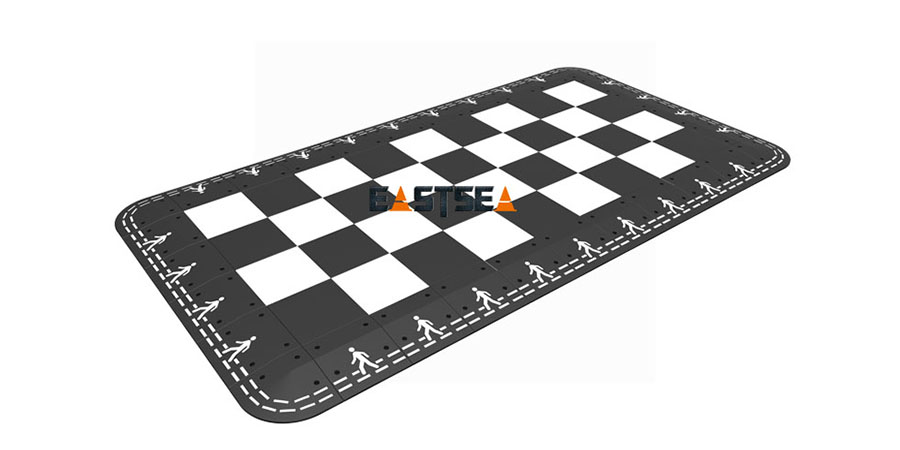

The Rubber Pedestrian Crossing will make the high-speed vehicles jump up, giving drivers an uncomfortable experience: this characteristic of Pedestrian Safety Crossing is aimed at pushing the drivers to limit vehicles speed, avoiding dangerous situations, especially for two wheels vehicles, and reduce the damage to who passed by at normal speed.
Completely made of vulcanized rubber movable modular parts.
The upper surface has particular non-slippery surface raised studs.
Fixed to the ground by expansion screws and Bone Connector.
Attractive, slip-resistant surface for sure-footed frication
The particular size of the modular parts can be used to meet any road.
High-Intensity Reflective Pedestrian Crossing Sign provides Better Night Visibility.
Related Products : Speed Table
| Model No | Dimension | Parts | Weight | Accessories |
|---|---|---|---|---|
| DH-PC[6X3] | 6Meter X 3Meter | 20 x Black Middle 20 x White Middle 28 x End Cap 4 x Corner Piece |
1100kg | “I” Connector Screws Caps |
| DH-PC[7X4] | 7Meter X 4Meter | 42 x Black Middle 42 x White Middle 40 x End Cap 4 x Corner Piece |
1880kg | “I” Connector Screws Caps |
[line]
Separate Parts Spec:
| Model No | Part | Dimension | Weight | Accessories |
|---|---|---|---|---|
| PC-B | Black Middle | 500x500x70mm | 15kg | |
| PC-W | White Middle | 500x500x70mm | 15kg | “I”Connector |
| PC-E | End Cap | 500x500x70mm | 10kg | Screws Caps |
| PC-R | Corner | 500x500x70mm | 10kg |
